Description

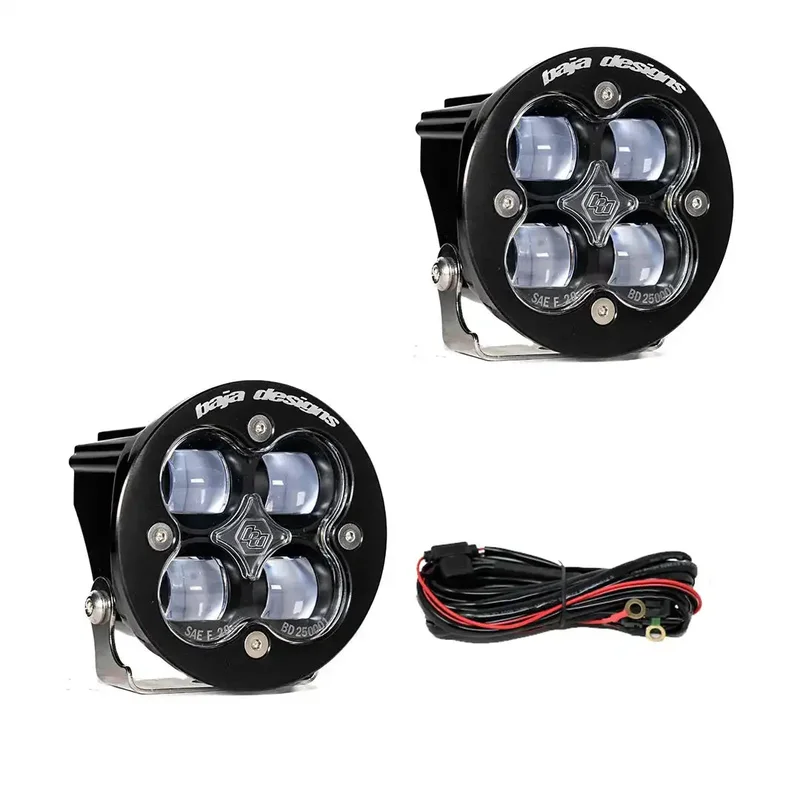

Baja Designs next generation Squadron® SAE is the perfect road-legal auxiliary fog light on the market today. Engineered with all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56 Percent over our previous generation SAE model. The all-new Squadron® SAE delivers 2,420 lumens per light with output reaching up to 15,800 candela at just 29 Watt. Keeping you safe on the road or trails, the Squadron® SAE will illuminate Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics. Designed to meet the current SAE J583 fog lamp requirements, the Squadron® SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather.
Features & Benefits
- ClearView: All The Light, Right Where You Need It
- MoistureBlock: Waterproof, Rain Proof, Submersible
- CopperDrive: Only LED Driven At 100 Percent
- 5000K Daylight: Less Driver Fatigue, Natural Color
- Limited Lifetime Warranty
Attributes
- Bulb Type: LED
- Beam Type: Fog Beam
- Shape: Round
- Diameter: 3 Inch
- Height/ Width: Not Applicable
- Depth: 2.77 Inch
- Light Color: Clear
- Wattage: 29 Watt
- Mounting Style: Bracket Mount
- Quantity: Set Of 2
- Lumens: 2420 Raw Lumens
- Bulb Specifications: 4 Clear LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum
- Includes: Wiring Harness And Mounting Hardware
- Estimated Install Time (Hours): 1.5
NOTE: uService® is NOT a feature of SAE products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.
| Depth (in.) | 2.77 |
| Height (in.) | 3.07 |
| Length (in.) | 3.07 |
| Weight (lbs.) | 0.75 |
| Amperage Rating (A) | 2.1 |
| Average Rated Life (hr.) | 49930 |
| Beam Pattern | SAE Fog |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 2420 |
| Round; SAE Fog; Clear; Pair | |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Forward Projecting |
| Lighting Type | Cree LED |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron-R SAE LED Light Pod Pair w/ Wiring Harness |
| Wattage (W) | 29 |
| Wiring Harness Included | Yes |
| DOT Approved | No |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (SAE) | SAE Standard J583 |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Street Legal | Yes |
